Restraints Control Module (RCM): Removal

WARNING: Do not handle, move or change the original horizontal mounting position of the restraints control module (RCM) while the RCM is connected and the ignition switch is ON. Failure to follow this instruction may result in the accidental deployment of the Safety Canopy® and cause serious personal injury or death.
WARNING: If a vehicle has been in a crash, inspect the restraints control module (RCM) and the impact sensor (if equipped) mounting areas for deformation. If damaged, restore the mounting areas to the original production configuration. A new RCM and sensors must be installed whether or not the air bags have deployed. Failure to follow these instructions may result in serious personal injury or death in a crash.
NOTE: Always make sure the correct Supplemental Restraint System (SRS) component is being installed. Parts released for other vehicles may not be compatible even if they appear physically similar. Check the part number listed in the Ford Catalog Advantage™ or equivalent to make sure the correct component is being installed. If an incorrect SRS component is installed, DTCs may set.
NOTE: The air bag warning indicator illuminates when the correct Restraints Control Module (RCM) fuse is removed and the ignition is ON.
NOTE: The Supplemental Restraint System (SRS) must be fully operational and free of faults before releasing the vehicle to the customer.
NOTE: This vehicle is equipped with the SYNC® feature which contains the 911 assist option.
NOTE: Carrying out Programmable Module Installation (PMI) will not enable the 911 assist option that is disabled.
  1. If installing a new RCM, carry out the steps necessary to prepare for PMI. For additional information, refer to MODULE CONFIGURATION article.
  2. Depower the SRS. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING  .
  3. Remove 2 front LH floor console screws and position the carpet to access the RCM bolts.
  4. Remove the RCM access cover.
    • Remove the scrivet.
    • Pull forward to release the 2 retainer hooks and remove the RCM access cover.

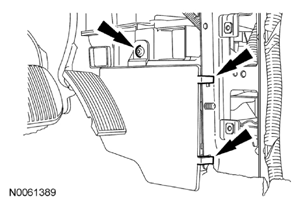

      Fig 1: Locating RCM Access Cover Retainer Hooks
      G07944024Courtesy of FORD MOTOR CO.
  5. Disengage the lock tab, press and disconnect the small RCM electrical connector.
    Fig 2: Disconnecting Small RCM Electrical Connector
    G07944025Courtesy of FORD MOTOR CO.
  6. Disconnect the large RCM electrical connector.
    1. Pinch the thumb tab and pivot the connector position assurance lever all the way back until it stops.
    2. Pull out and disconnect the RCM electrical connector.

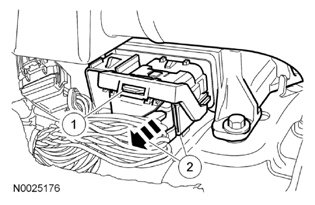

      Fig 3: Disconnecting Large RCM Electrical Connector
      G07944026Courtesy of FORD MOTOR CO.
  7. Remove the 3 bolts and RCM.
