Side Air Bag Module: Notes

NOTE: Passenger seat shown in illustration, driver similar.

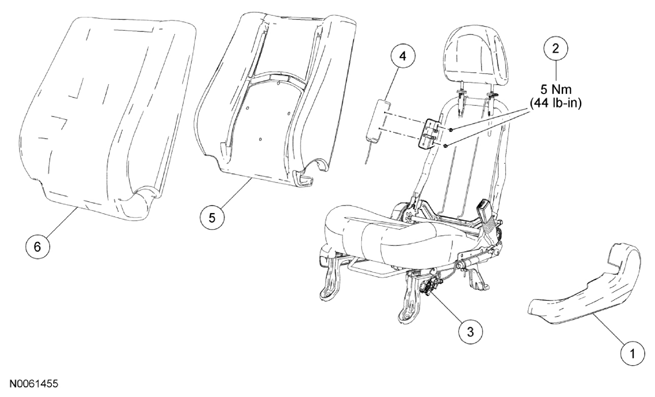

Fig 1: Exploded View Of Side Air Bag Module With Torque Specifications
G07944048Courtesy of FORD MOTOR CO.
Item Part Number Description
1 62187B Inboard seat cushion side shield
2 W520111 Side air bag module nuts (2 required)
3 - Electrical connector (part of 611D11 LH/ 611D10 RH)
4 611D11 LH/ 611D10 RH Side air bag module (passenger side/ driver side)
5 64810 Seat backrest foam pad
6 64416 Seat backrest trim cover
