Removal and Installation

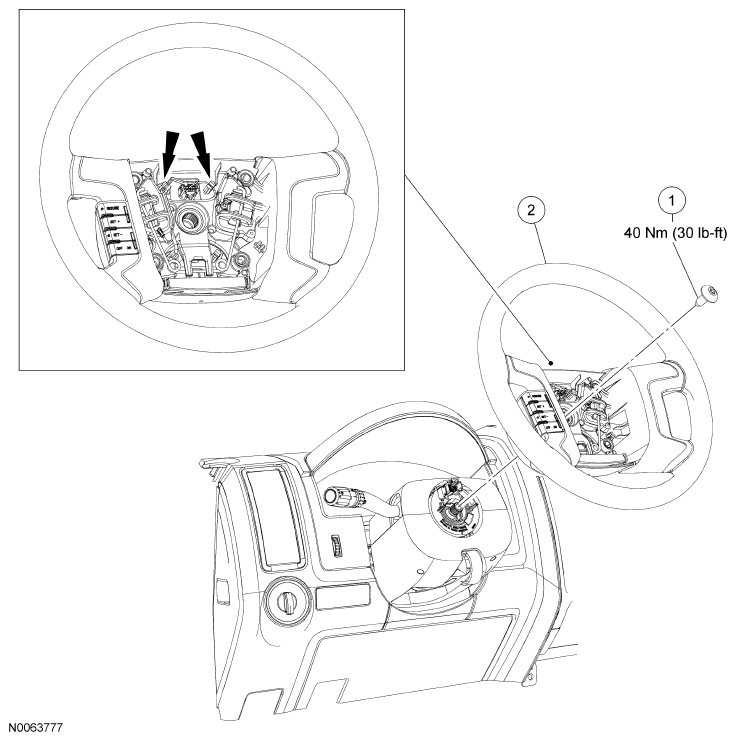

Fig 1: Steering Wheel And Bolt With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W705317	Steering wheel bolt
2	3600	Steering wheel

Remove the driver air bag module. For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM article.
Disconnect the steering wheel switch electrical connector from the clockspring.
- Detach the steering wheel switch wiring from the retainers and position the wires.
Remove the steering wheel bolt.
- To install, tighten to 40 Nm (30 lb-ft).

NOTE: Do not allow the Steering Wheel Puller to damage the steering wheel switch wires and connector while removing the steering wheel.

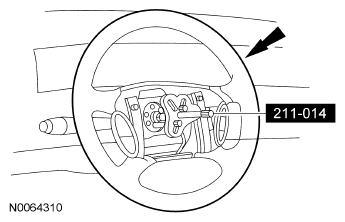

Fig 2: Removing Steering Wheel Using Steering Wheel Puller

Courtesy of FORD MOTOR CO.

Using the Steering Wheel Puller, remove the steering wheel.
Tape the clockspring center rotor to the outer housing to keep it from rotating.

Fig 3: Locating Outer Housing Center Rotor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
