External Controls: Notes

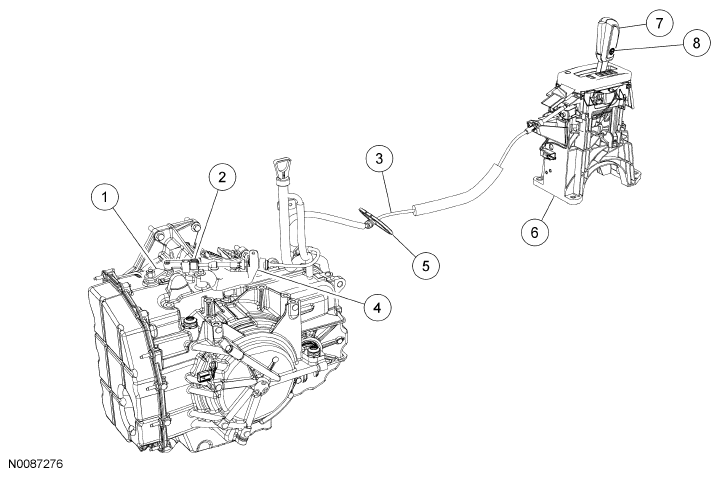

| Item | Description |
|---|---|
| 1 | Manual control lever |
| 2 | Adjuster locking tab (part of 7E395) |
| 3 | Selector lever cable |
| 4 | Selector lever cable bracket |
| 5 | Selector lever cable grommet (part of 7E395) |
| 6 | Selector lever assembly |
| 7 | Selector lever knob |
| 8 | Transmission Control Switch (TCS) |
The transaxle external controls system consists of the following components:
- Selector lever cable and bracket
- Park range switch (part of the selector lever)
- Brake Shift Interlock Actuator (BSIA)
- Selector lever
The selector lever controls the transaxle gear selection through the selector lever cable. The cable detent and selector lever locking position is controlled by the selector lever knob.
