Selector Lever: Installation

All vehicles

1. Install the selector lever assembly and the 4 bolts.
   • Tighten to 15 Nm (133 lb-in).

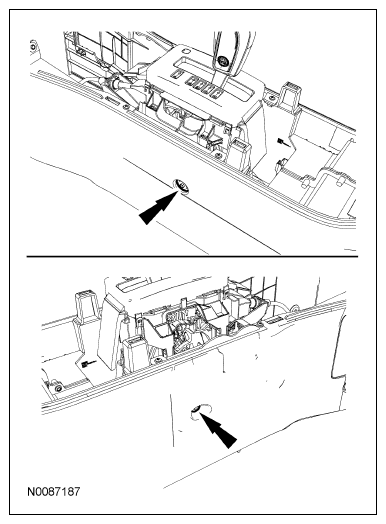

     Fig 1: Locating Selector Lever Assembly Bolts

     Courtesy of FORD MOTOR CO.
2. Install the 2 center console screws.

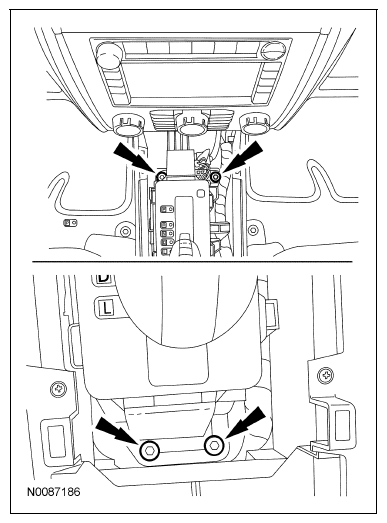

   Fig 2: Locating Center Console Screws

   Courtesy of FORD MOTOR CO.

   AWD vehicles

3. Install the AWD module on to the back of the selector lever.

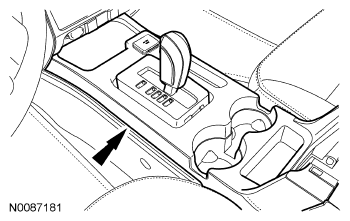

   Fig 3: Locating All-Wheel Drive (AWD) Module

   Courtesy of FORD MOTOR CO.

   All vehicles

4. Connect the electrical connectors to the selector lever.
   1. Install the vehicle harness connector on the selector lever.
   2. Connect the selector lever electrical connector.

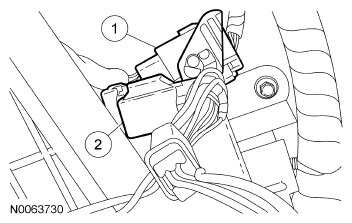

      Fig 4: Identifying Vehicle Harness And Selector Lever Electrical Connectors

      Courtesy of FORD MOTOR CO.
5. Connect the wiring harness retainers to the selector lever.

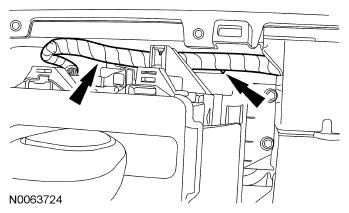

   Fig 5: Locating Wiring Harness Retainers

   Courtesy of FORD MOTOR CO.
6. Install the selector lever cable on the selector lever assembly.
   1. Install the selector lever cable on the bracket.
   2. Connect the selector lever cable end.

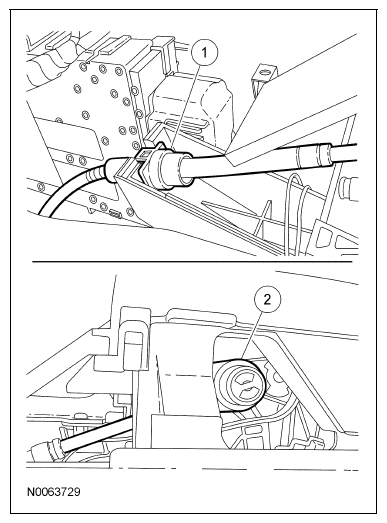

      Fig 6: Identifying Selector Lever Cable And Cable End

      Courtesy of FORD MOTOR CO.
7. If necessary, install a new light bulb and install the selector level bezel light socket to the side of the selector level bezel.
8. Install the top finish panel.
   Fig 7: Locating Top Finish Panel

   Courtesy of FORD MOTOR CO.
9. Install the center console compartment tray.
   Fig 8: Locating Center Console Compartment Tray

   Courtesy of FORD MOTOR CO.
10. Install the upper selector lever trim ring.
    Fig 9: Locating Upper Selector Lever Trim Ring

    Courtesy of FORD MOTOR CO.
11. Adjust the selector lever cable. For additional information, refer to SELECTOR LEVER CABLE ADJUSTMENT .
