Smart Junction Box (SJB): Notes

SPECIAL TOOLS CHART

Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

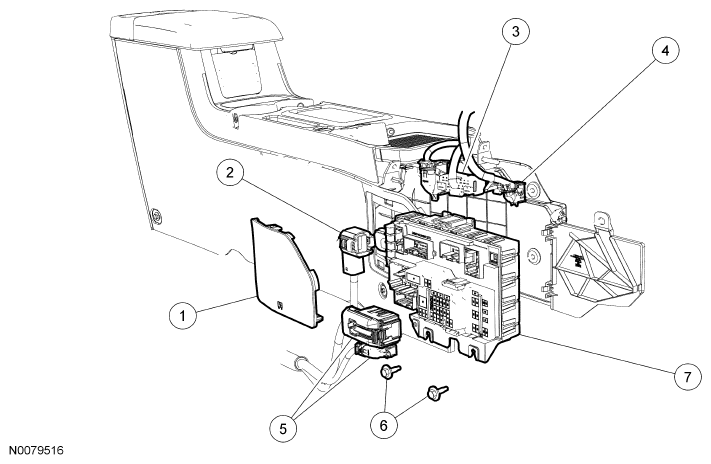

Fig 1: Identifying Smart Junction Box With Related Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Floor console Smart Junction Box (SJB) cover
2	-	SJB electrical connector (part of 14A120)
3	-	SJB electrical connectors (2 required) (part of 14290)
4	-	SJB electrical connectors (2 required) (part of 14401)
5	-	SJB electrical connectors (2 required) (part of 14405)
6	W505423-S	SJB bolts (2 required)
7	15604	SJB
