Occupant Classification Sensor - Original Equipment: Notes
SPECIAL TOOLS CHART
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |

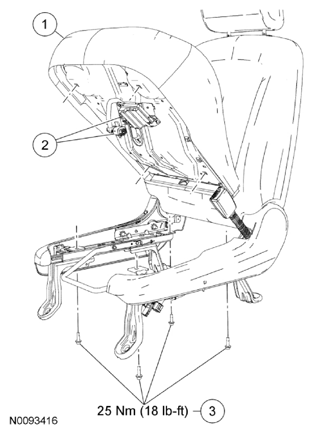

Fig 1: Occupant Classification Sensor, Seat Cushion Assembly And Seat Track-To-Cushion Frame Bolts With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Seat cushion assembly |
| 2 | - | Occupant Classification System (OCS) pressure sensor and Occupant Classification System Module (OCSM) |
| 3 | - | Seat track-to-cushion frame bolts |

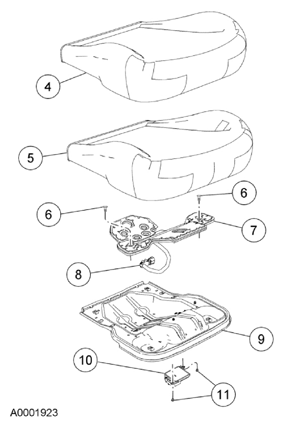

| Item | Part Number | Description |
|---|---|---|
| 4 | 62900 | Seat cushion trim cover |
| 5 | - | Seat cushion foam pad |
| 6 | - | Pin-type retainers |
| 7 | - | Occupant Classification System (OCS) bladder |
| 8 | - | Pressure sensor |
| 9 | - | Seat cushion pan |
| 10 | - | Occupant Classification System Module (OCSM) |
| 11 | 391950 | OCSM rivets |
