Steering Column Shroud: Notes

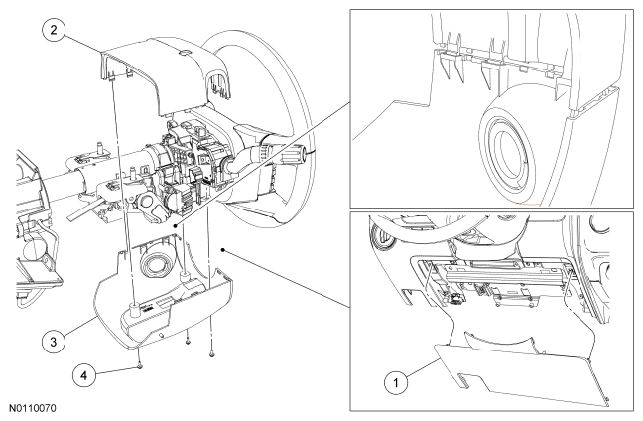

Fig 1: Identifying Steering Column Shroud Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3524	Steering column opening trim panel
2	3530	Upper steering column shroud
3	3530	Lower steering column shroud
4	W707658	Lower steering column shroud screw (3 required)
