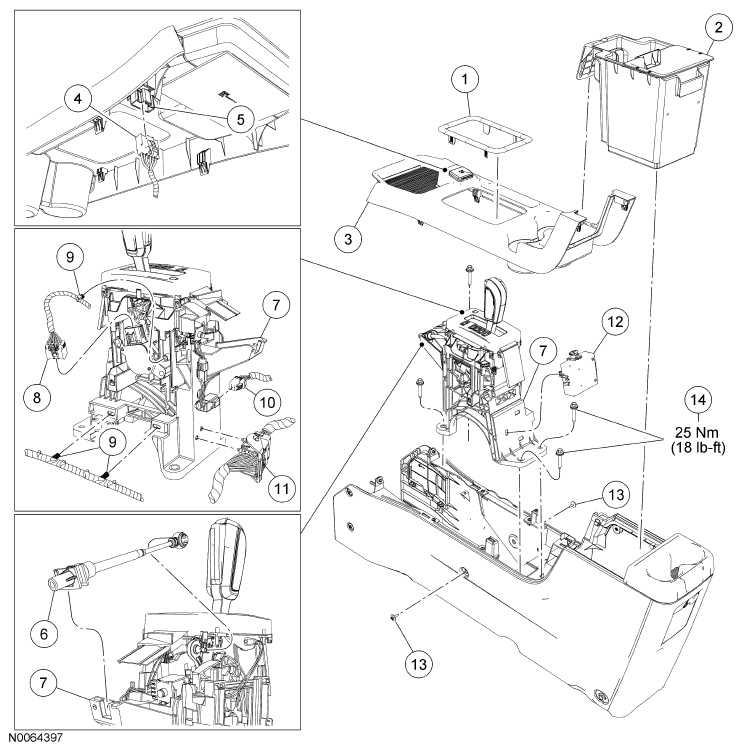

| 1 |
78061A16 |
Trim ring |
| 2 |
78044H06 |
Center console compartment tray |
| 3 |
78045A76 |
Center console finish panel |
| 4 |
14A464 |
Power outlet electrical connector |
| 5 |
19G247 |
Power outlet |
| 6 |
7E395 |
Selector lever cable |
| 7 |
7K004 |
Selector lever assembly |
| 8 |
7C453 |
Transmission Range (TR) sensor electrical connector |
| 9 |
13A506 |
Wiring harness retainers |
| 10 |
14489 |
Selector lever electrical connector |
| 11 |
14A459 |
Vehicle wiring harness connector |
| 12 |
070704 |
All-Wheel Drive (AWD) module (AWD vehicles only) |
| 13 |
W705796 |
Center console screws (2 required) |
| 14 |
W503298 |
Selector lever bolts (4 required) |
