Transaxle Front Support Insulator: Notes

SPECIAL TOOLS CHART

	Adapters for 303-290 303-290A-01
	Adapter for 303-290A (Support Leg) 303-290A-03A
	Support Bar, Engine 303-290A

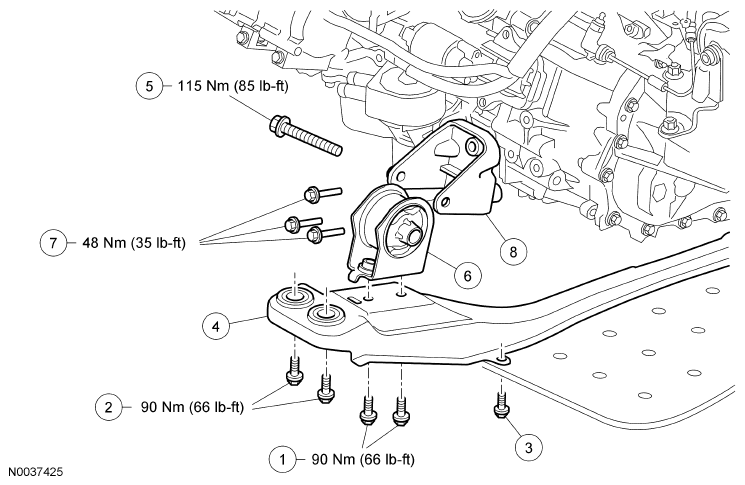

Fig 1: Transaxle Front Support Insulator Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W706899	Transaxle front support insulator bolts (2 required)
2	W706899	Transaxle front-to-aft crossmember bolts (2 required)
3	-	Splash shield screw
4	10852	Transaxle front-to-aft crossmember
5	W711268	Transaxle front support insulator through bolt
6	6E037	Transaxle front support insulator
7	W500321	Transaxle front support insulator bracket bolts (3 required)
8	6A060	Transaxle front support insulator bracket
