OEM Ground Distribution: Grounds: G400

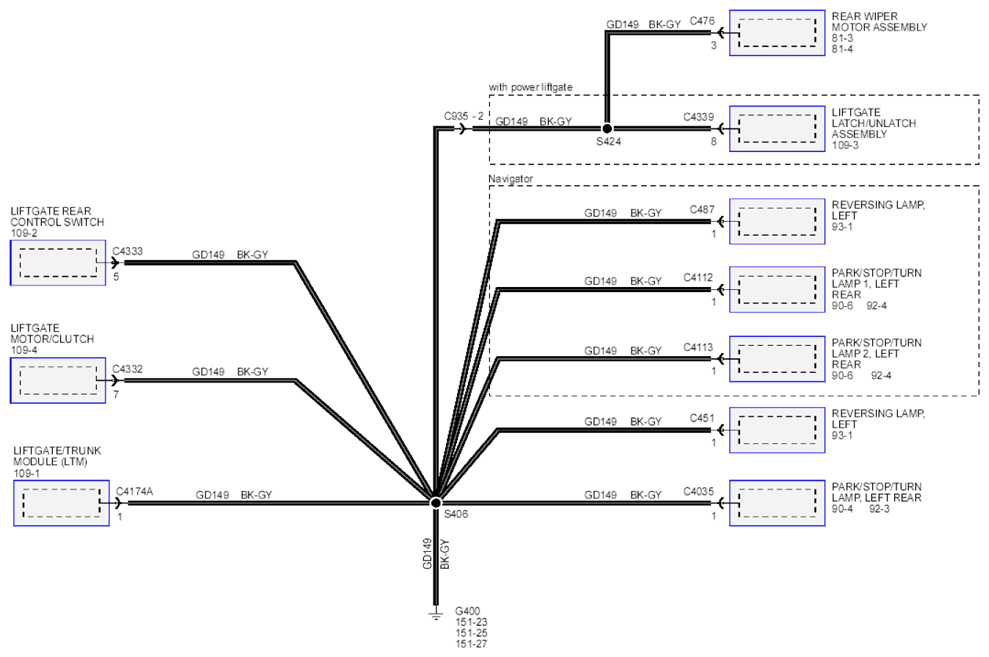

Fig 1: Grounds Circuit Diagram (G400)

G07900406

Courtesy of FORD MOTOR CO.
