Air Spring Solenoid Valve: Notes

SPECIAL TOOLS CHART

Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool

MATERIAL SPECIFICATIONS

Item	Specification
Silicone Brake Caliper Grease and Dielectric Compound XG-3-A	ESE-M1C171-A

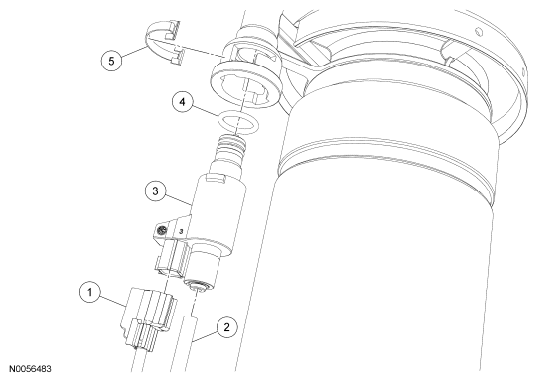

Fig 1: Identifying Air Spring Solenoid Valve Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Air spring solenoid electrical connector (part of 14A464)
2	-	Air line (part of 3C002)
3	-	Air spring solenoid valve (part of 3C199)
4	-	Solenoid valve O-ring (part of 3C199)
5	-	Air spring solenoid clip (part of 3C199)
