RH Side: Notes

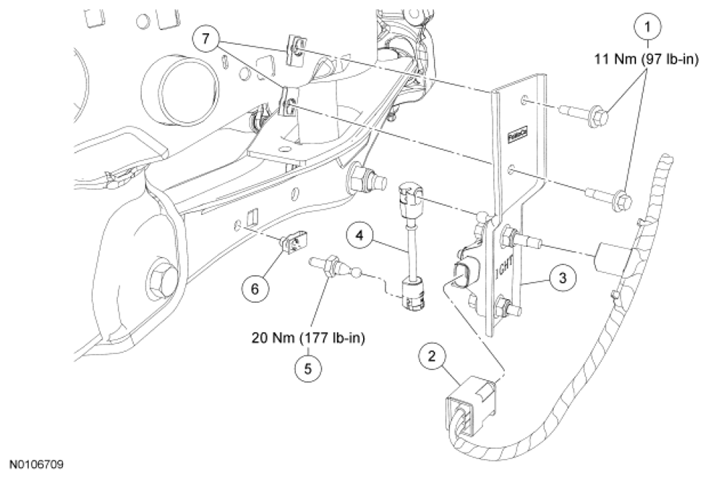

Fig 1: Suspension Height Sensor Replacement Components With Torque Specifications (RH Side)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W506014	Height sensor bolts (4 required)
2	-	Sensor electrical connector (part of 14405)
3	5A967	Ride height sensor
4	-	Sensor arm (part of 5A967)
5	5A945	Ride height sensor ball stud
6	W711660	Ball stud nut clip
7	W712408	Frame nut clips (2 required)
