Transfer Case Rear Output Shaft Seal: Notes

SPECIAL TOOLS CHART

Installer, Input Shaft Oil Seal 308-249 (T96T-7127-A)

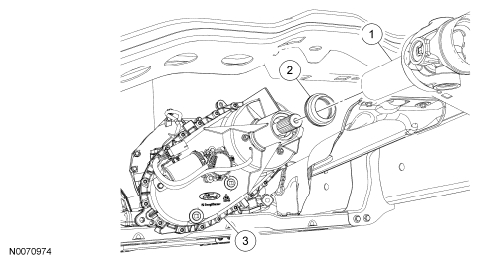

Fig 1: Identifying Transfer Case Rear Output Shaft Seal

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	4602	Driveshaft
2	7B215	Rear output shaft seal
3	7A195	Transfer case
