Integrated Wheel End (IWE): Notes

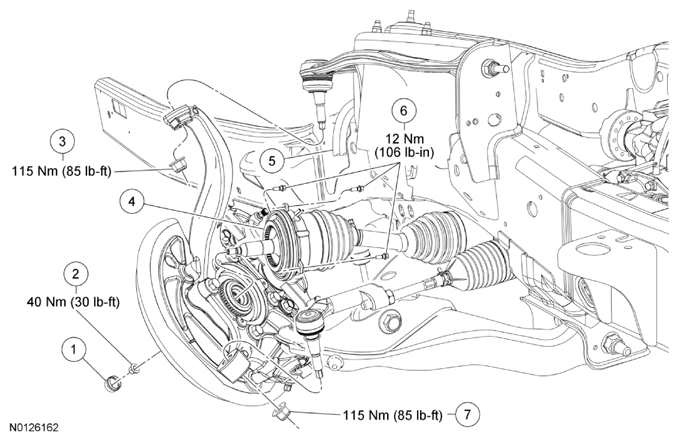

Fig 1: Integrated Wheel End (IWE) Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	1131	Dust cap
2	N802827-S	Axle nut
3	W520215-S	Upper ball joint nut
4	3C247	Integrated Wheel End (IWE)
5	-	Vacuum vent and supply tube
6	W710279-S	IWE bolts (3 required)
7	W520215-S	Tie-rod nut
