Fuel Pump Control Module: Notes

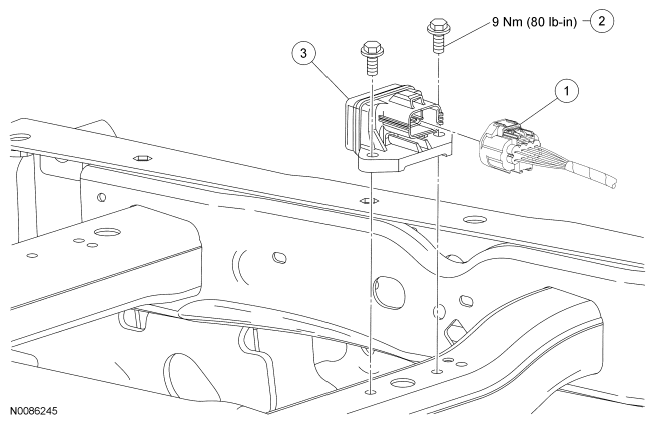

Fig 1: Exploded View Of Fuel Pump Control Module With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	14A464	Fuel Pump (FP) control module electrical connector (part of 14404)
2	W705549	FP control module bolt (2 required)
3	9345	FP control module
