Heated Seat Module - Second Row: Notes

NOTE: Bottom of floor console shown.

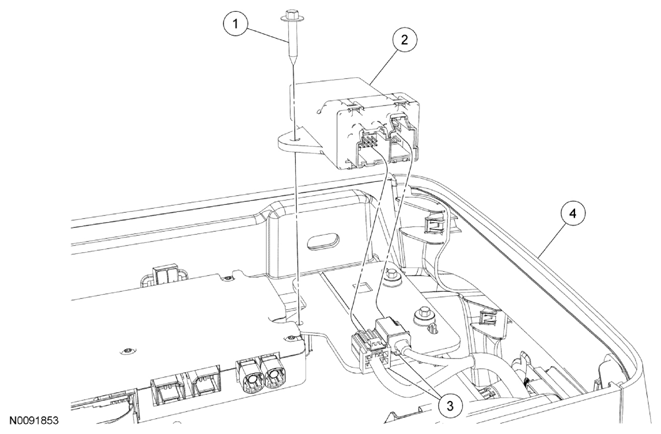

Fig 1: Identifying Front Floor Console, Heated Seat Module, Screw And Electrical Connectors

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Screw
2	14C724	Heated seat module
3	-	Electrical connectors (part of 14B079)
4	-	Front floor console
