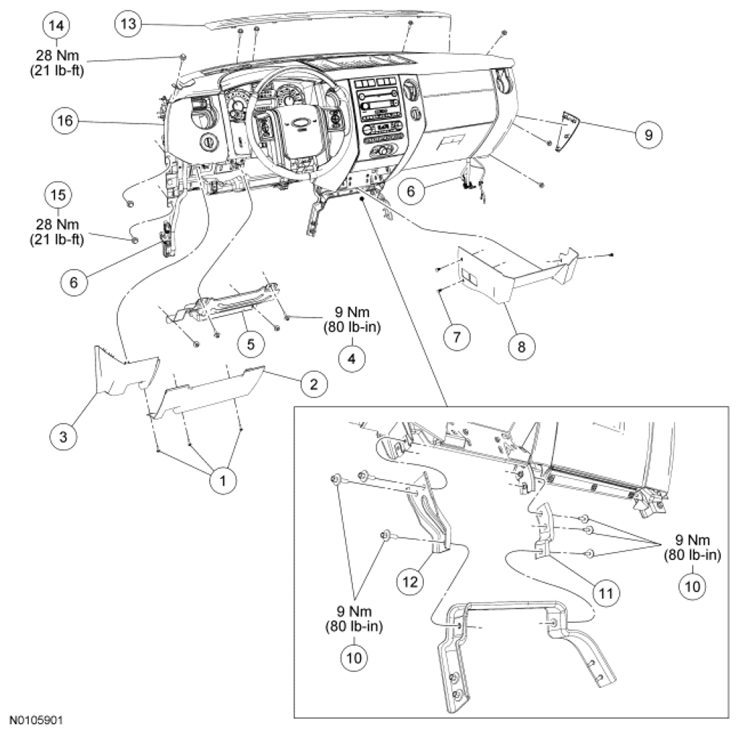

| 1 |
W707628 |
Steering column opening trim panel screws (3 required) |
| 2 |
04459 |
Steering column opening trim panel |
| 3 |
- |
Instrument panel lower cover |
| 4 |
W710879 |
Steering column reinforcement panel bolt (4 required) |
| 5 |
017A28 |
Steering column reinforcement panel |
| 6 |
14401 |
Instrument panel electrical wiring harness connectors |
| 7 |
N811040 |
Pin-type retainer (3 required) |
| 8 |
- |
Valance panel |
| 9 |
04480 |
Instrument panel side finish panel |
| 10 |
W710879 |
Instrument panel floor brace bolts (6 required) |
| 11 |
- |
Instrument panel floor brace RH |
| 12 |
- |
Instrument panel floor brace LH |
| 13 |
044E82 |
Instrument panel defroster grille |
| 14 |
W706246 |
Instrument panel cowl bolt (5 required) |
| 15 |
W706246 |
Instrument panel bolt (4 required) |
| 16 |
04320 |
Instrument panel |
