Steering Column Motor: Notes

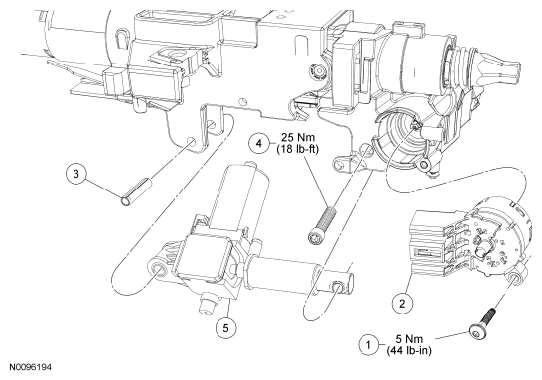

Fig 1: Steering Column Motor Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	11B572	Ignition switch screw
2	11572	Ignition switch
3	-	Steering column motor roll pin (part of 3D538)
4	-	Steering column motor bolt (part of 3D538)
5	3D538	Steering column motor
