Reverse Position: Notes

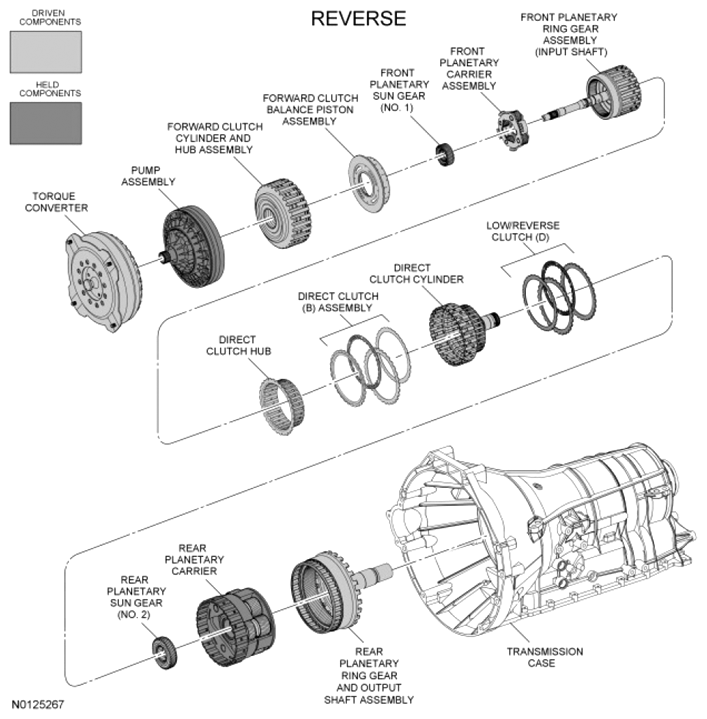

Fig 1: Exploded View Of Reverse Position
G07475857Courtesy of FORD MOTOR CO.
