Module Communication Network: Notes

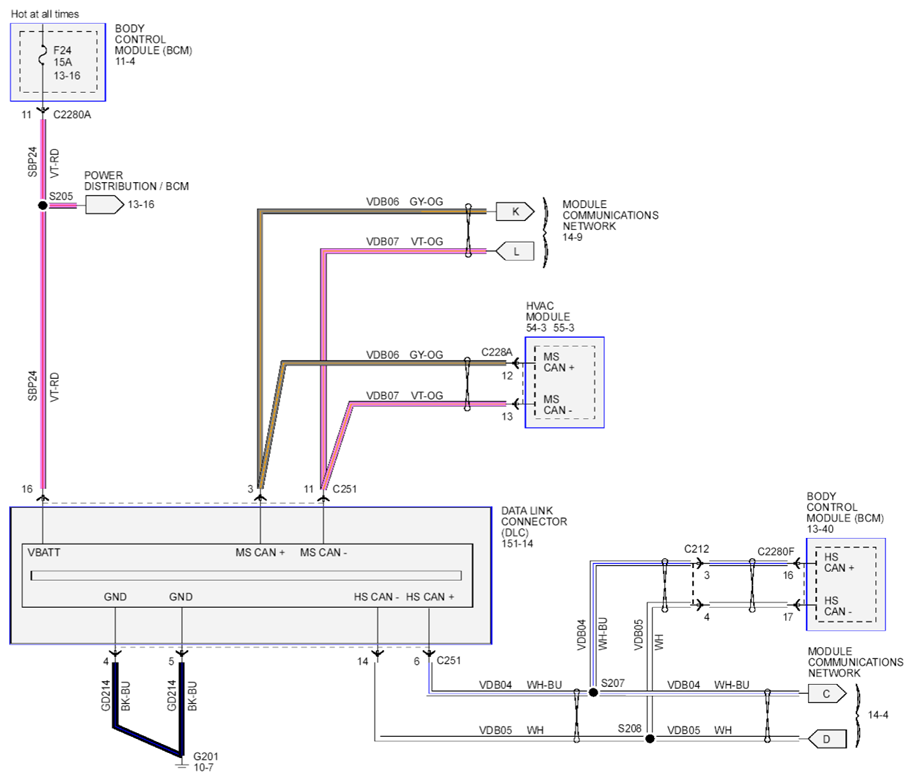

Fig 1: Module Communication Network Circuit Diagram
G07895331Courtesy of FORD MOTOR CO.
