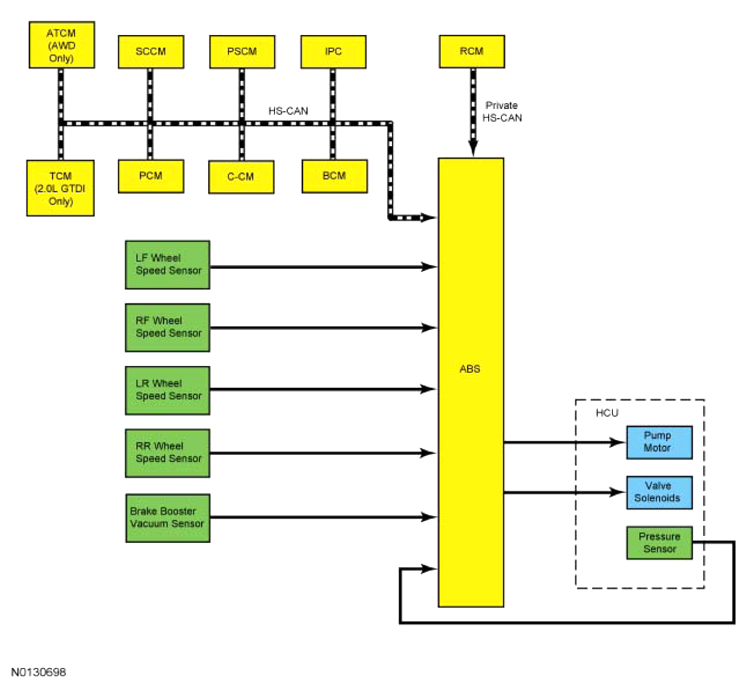

Home › Ford › 2012 › Explorer Base, 2.0 9 › Repair and Diagnosis › Brakes › Traction Control › Anti-Lock Brake System And Stability Control › Description And Operation › Anti-Lock Brake System (ABS) And Stability Control › System Operation › System Diagram
