Roof opening panel control switch: Schematic

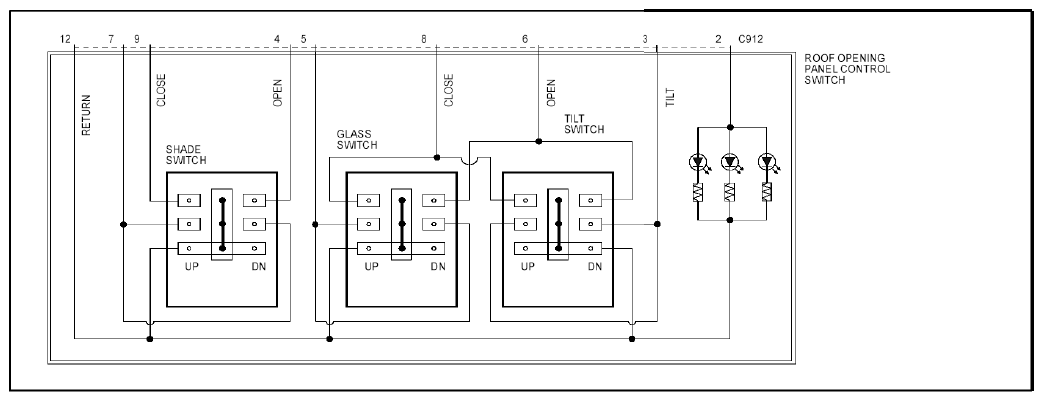

Fig 1: Roof Opening Panel Control Switch Schematic
G07895553Courtesy of FORD MOTOR CO.
