Exploded View

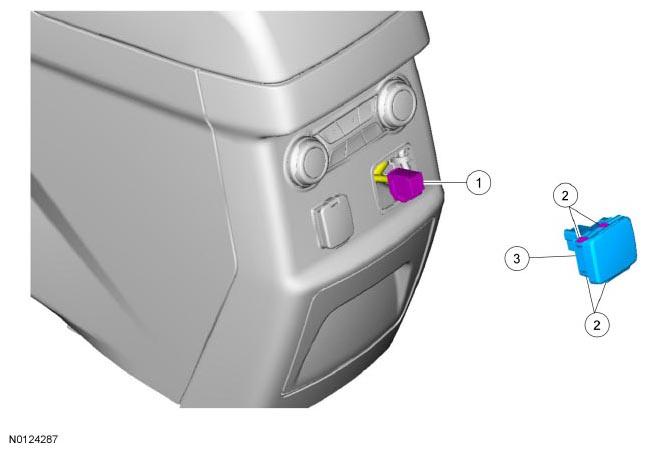

Fig 1: Exploded View Of Alternating Current (AC) Power Point Components Location

Courtesy of FORD MOTOR CO.

Item	Service Part Number	Description
1	-	AC power point electrical connector (part of 14A318)
2	-	AC power point retaining tabs (part of 19N236)
3	19N236	AC power point
