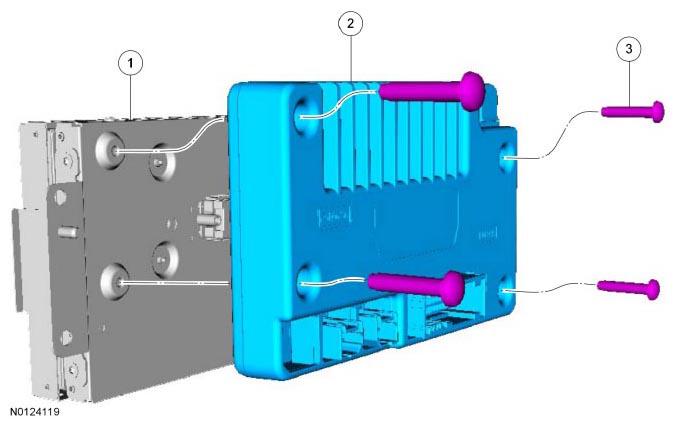

Exploded View

WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Item	Service Part Number	Description	Torque	Material Name	Notes
1	10D885	FDIM	-	-	-
2	14D212	APIM	-	-	-
3	-	APIM screws (4 required)	0.6 Nm (5 lb-in)	-	-
