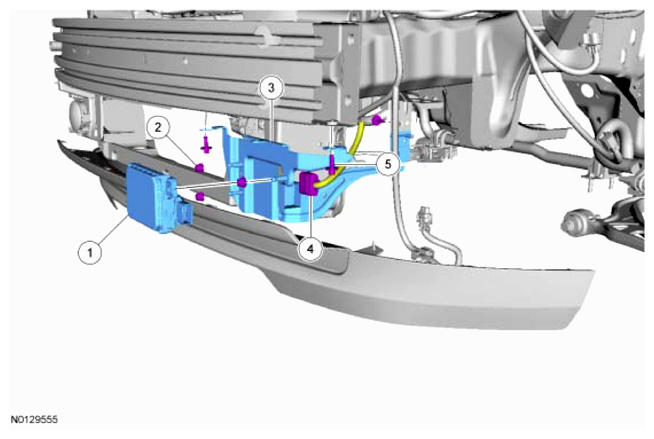

Exploded View
WARNING: This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Front bumper cover is removed for clarity.
| Item |
Part Number |
Description |
| 1 |
9E731 |
C-CM |
| 2 |
W790214 |
C-CM
ball socket grommets (3 required) |
| 3 |
14C022 |
C-CM
bracket |
| 4 |
- |
C-CM
electrical connector |
| 5 |
W710879 |
C-CM
bracket bolts (3 required) |
