Steering Column Shroud: Notes

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

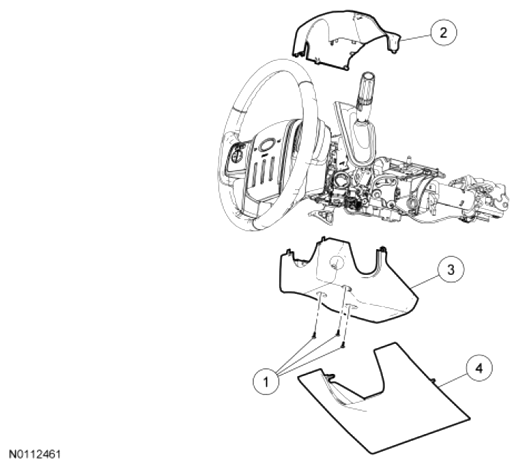

Fig 1: Identifying Steering Column Shroud, Opening Trim Panel And Screw

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W715057	Lower steering column shroud screws (3 required)
2	3533	Upper steering column shroud
3	3533	Lower steering column shroud
4	04459	Steering column opening trim panel
