OEM Ground Distribution: Grounds: G103

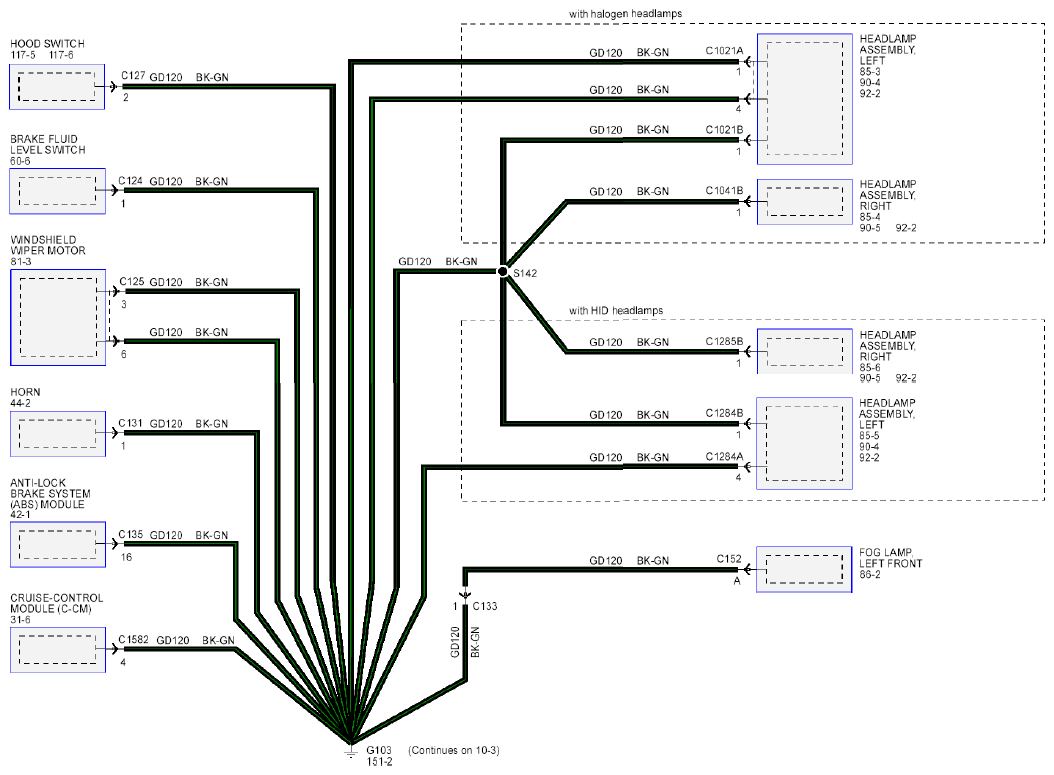

Fig 1: Grounds Circuit Diagram (G103)
G07895271Courtesy of FORD MOTOR CO.
