OEM Ground Distribution: Grounds: G200

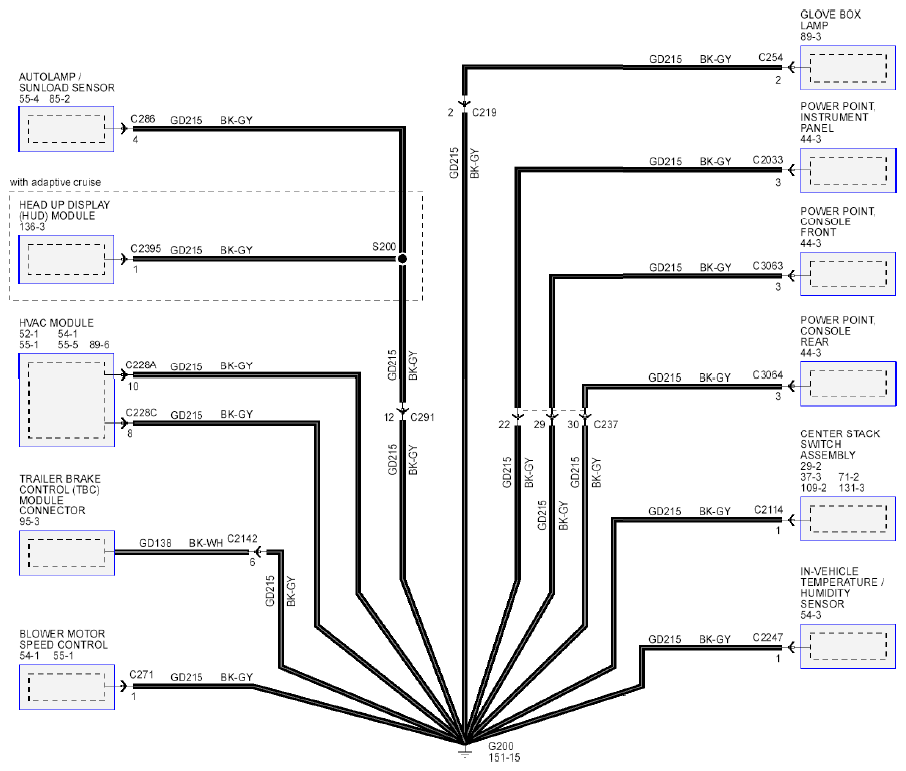

Fig 1: Grounds Circuit Diagram (G200)

G07895275

Courtesy of FORD MOTOR CO.
