OEM Ground Distribution: Grounds: G201

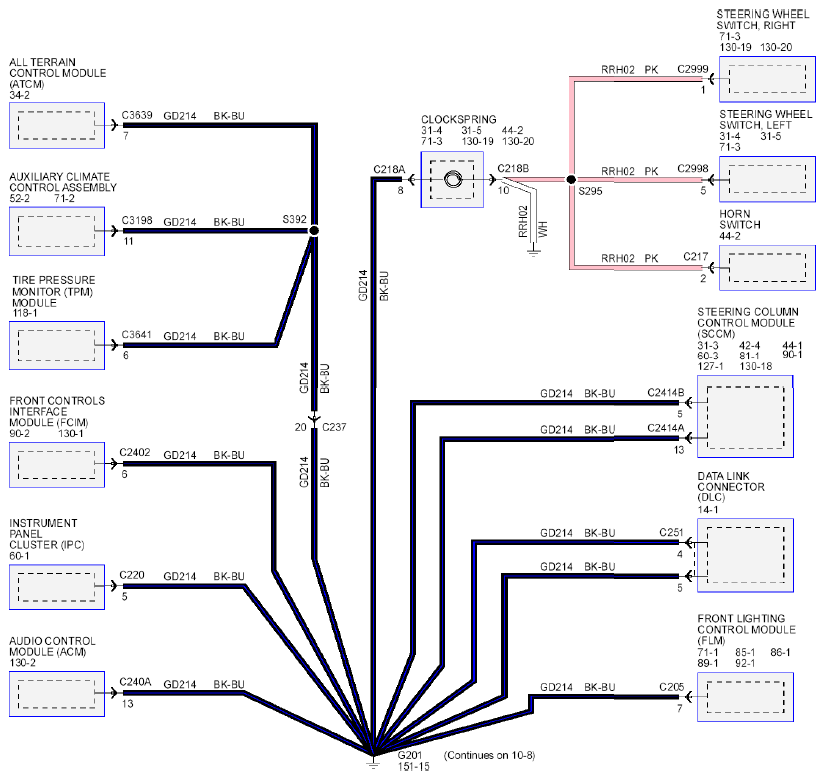

Fig 1: Grounds Circuit Diagram (G201)
G07895276Courtesy of FORD MOTOR CO.

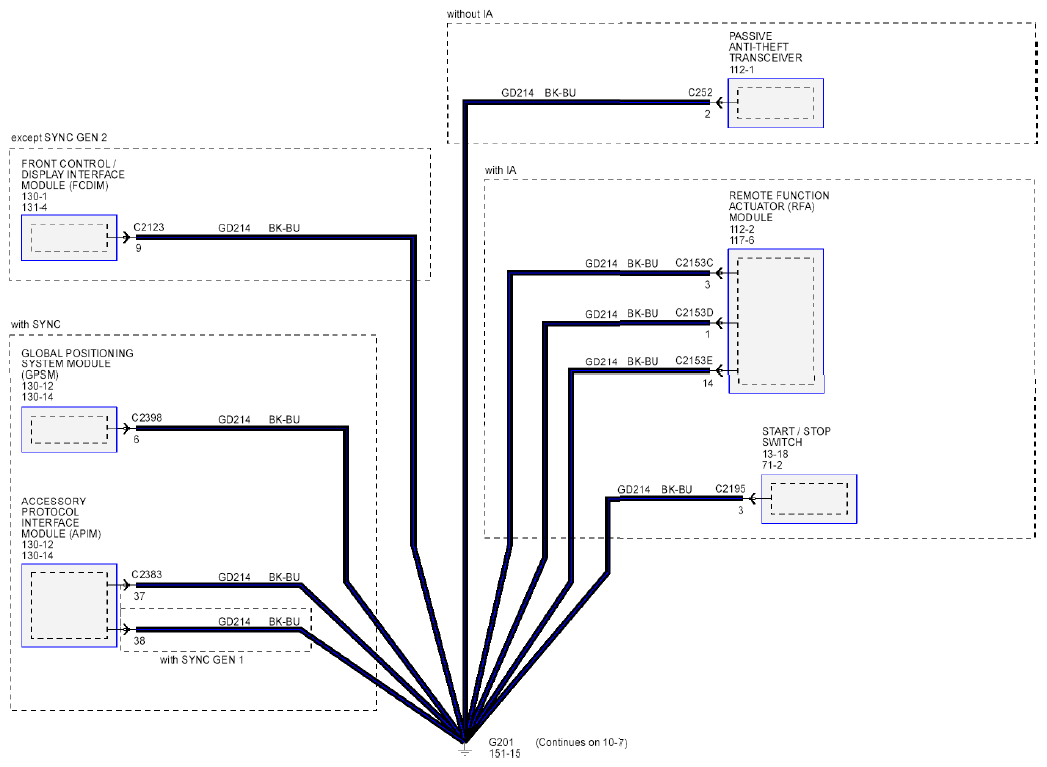

Fig 2: Grounds Circuit Diagram (G201)
G07895277Courtesy of FORD MOTOR CO.
