OEM Ground Distribution: Grounds: G301

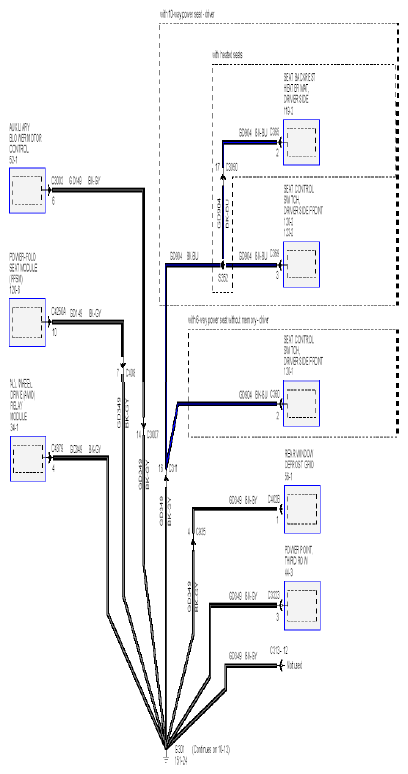

Fig 1: Grounds Circuit Diagram (G301)
G07895281Courtesy of FORD MOTOR CO.

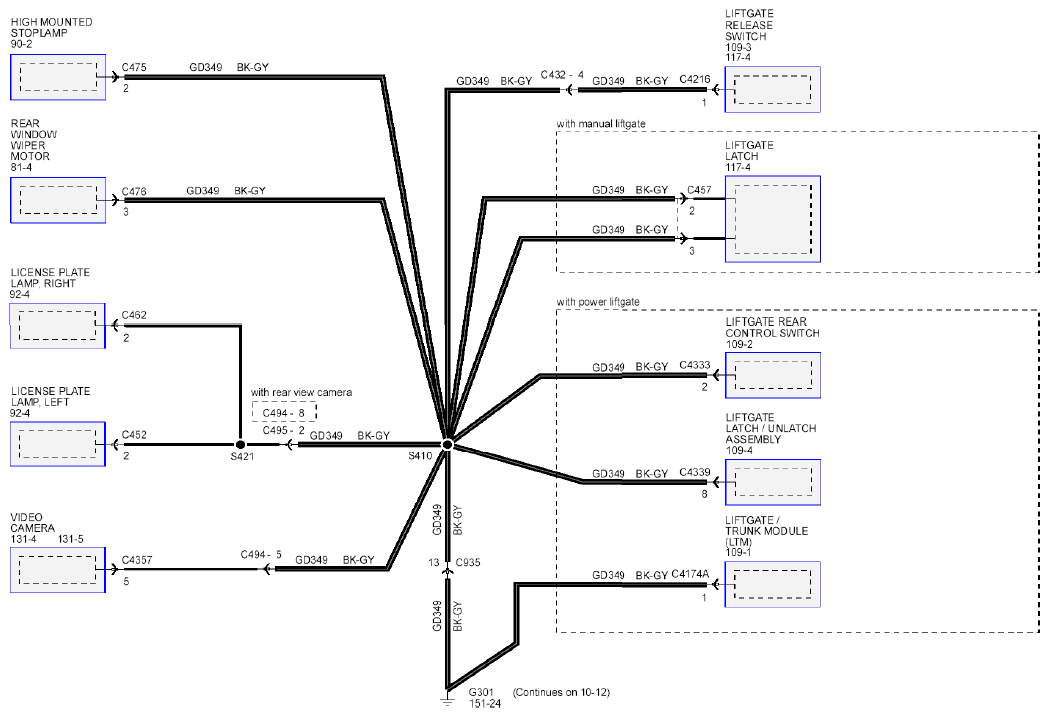

Fig 2: Grounds Circuit Diagram (G301)
G07895282Courtesy of FORD MOTOR CO.
