OEM Ground Distribution: Grounds: G400

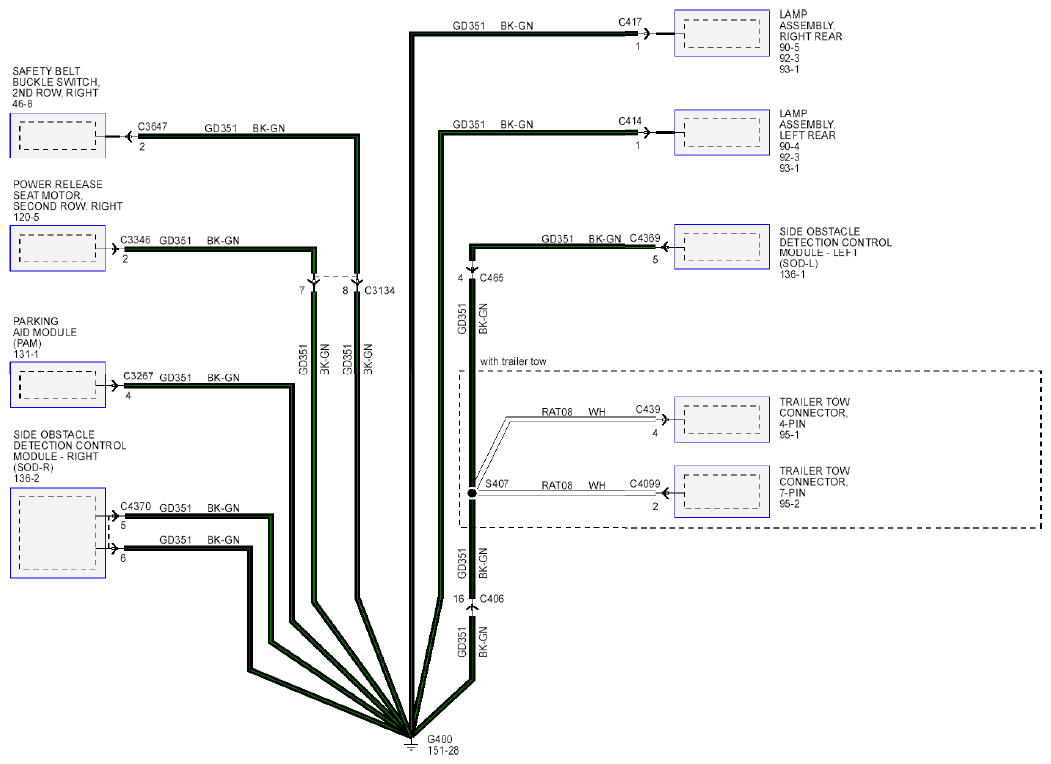

Fig 1: Grounds Circuit Diagram (G400)
G07895285Courtesy of FORD MOTOR CO.
