Exploded View

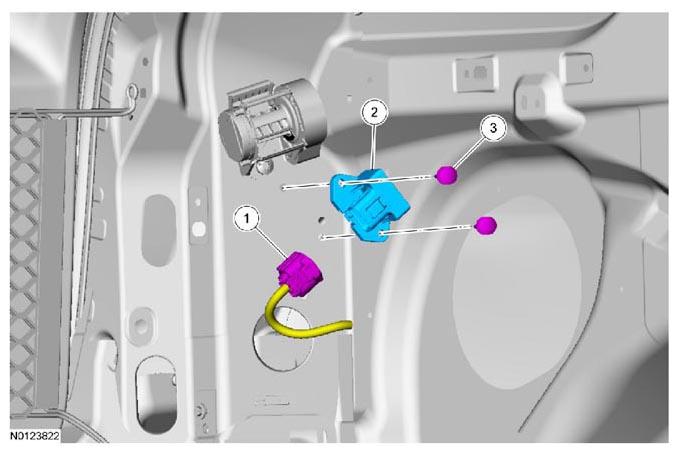

Fig 1: Exploded View Of All-Wheel Drive (AWD) Relay Module

Courtesy of FORD MOTOR CO.

Item	Service Part Number	Description
1	-	AWD relay module electrical connector (part of 14A005)
2	7E453	AWD relay module
3	W707373	AWD relay module pushpin (2 required)
