Section 281 (Climate Control System - EMTC)
›
Removal And Installation
›
Register - Center
›

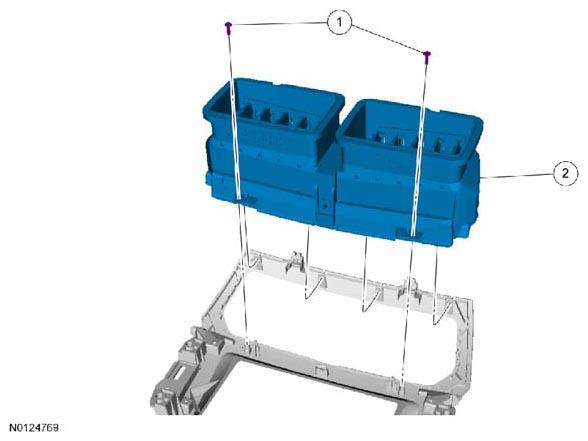

Exploded View
Exploded View
WARNING:
This page is about a different car, the 2013 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Item
Service Part Number
Description
Tool Number
Material Name
Notes
1
W713809
Center register assembly screw (2 required)
-
-
-
2
19893
Center register assembly
-
-
-
