Fuel Charging System & Fuel Control System - 1.6L
›
Removal And Installation
›
Fuel Pump Control Module
›
Notes
Fuel Pump Control Module: Notes

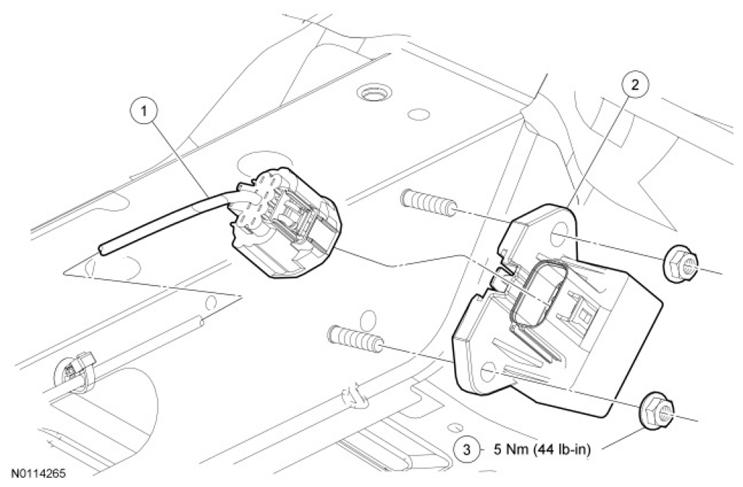

Fig 1: Exploded View Of Fuel Pump Control Module With Torque Specifications
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
-
Fuel Pump (FP) control module electrical connector (part of 14A005)
2
9D370
FP
control module
3
W711330
FP
control module nut (2 required)
