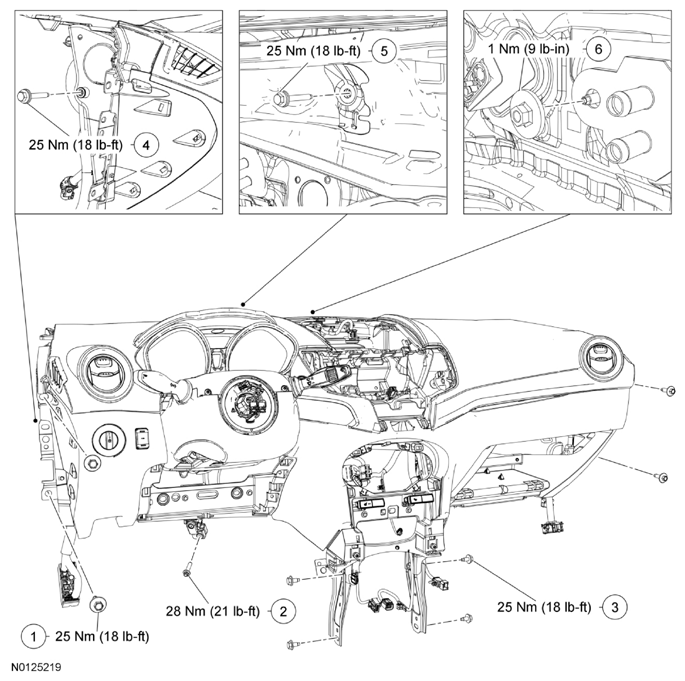

Instrument Panel Mounting Fasteners
| Item | Part Number | Description |
|---|---|---|
| 1 | W711557 | Instrument panel screw (4 required) |
| 2 | 3R827 | Steering column shaft-to-steering column bolt |
| 3 | W701096 | In-vehicle cross car beam to floor pan brace screw (2 required) |
| 4 | W711563 | LH instrument panel bolt |
| 5 | W711563 | Instrument panel-to-front of dash bolt |
| 6 | 18N316 | Exterior heater core housing nut |
- For additional information, refer to the appropriate procedures in this service information.
