Instrument Panel Upper Section: Notes

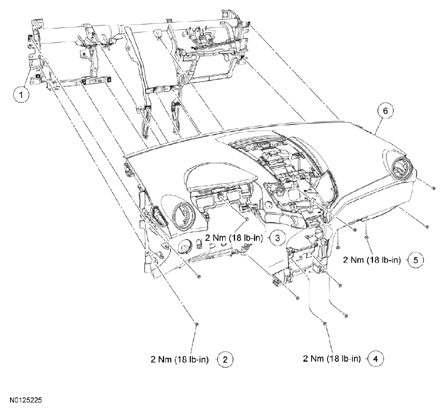

Fig 1: Instrument Panel Upper Section Related Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	04545	In-vehicle cross car beam
2	W711557	Instrument panel screw (4 required)
3	W711557	Instrument panel front screw (2 required)
4	W711557	Instrument panel screw (4 required)
5	W711557	Lower instrument panel screw (2 required)
6	04302	Upper instrument panel
