EVAP Monitor

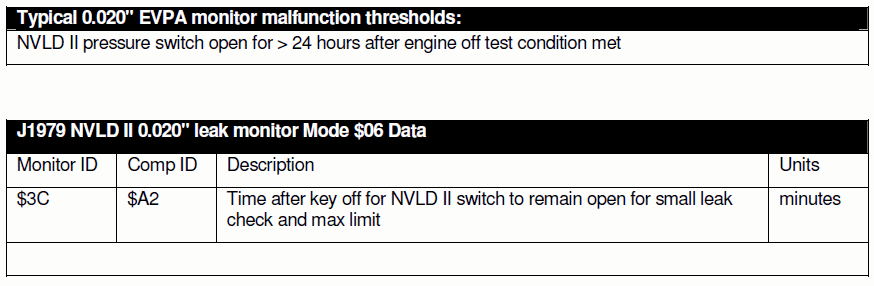

Fig 1: Mode $06 Data For EVAP Monitor (NVLD 0.020" Leak)
G00502266Courtesy of FORD MOTOR CO.

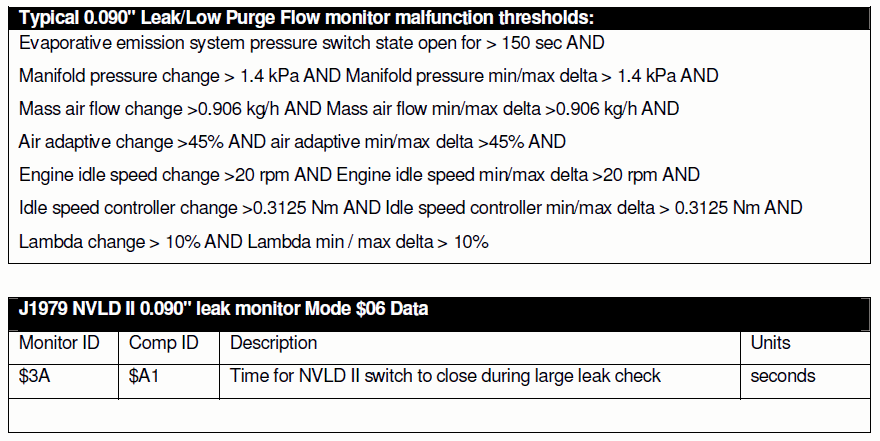

Fig 2: Mode $06 Data For EVAP Monitor (NVLD 0.090" Leak)
G00502267Courtesy of FORD MOTOR CO.

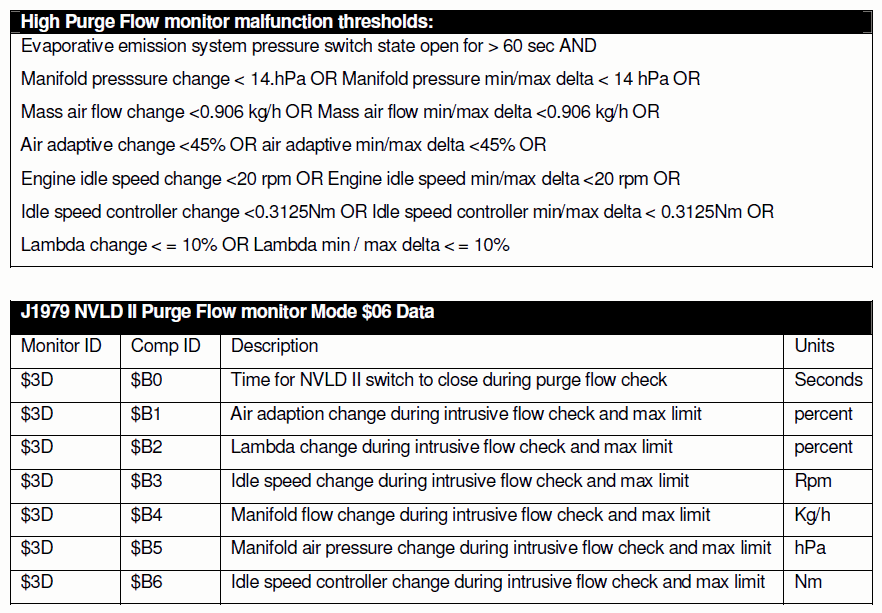

Fig 3: Mode $06 Data For EVAP Monitor Purge Flow
G00502268Courtesy of FORD MOTOR CO.
