Mode 6 - 2012 Ford
›
Front Ho2S Heater Monitor
Front Ho2S Heater Monitor

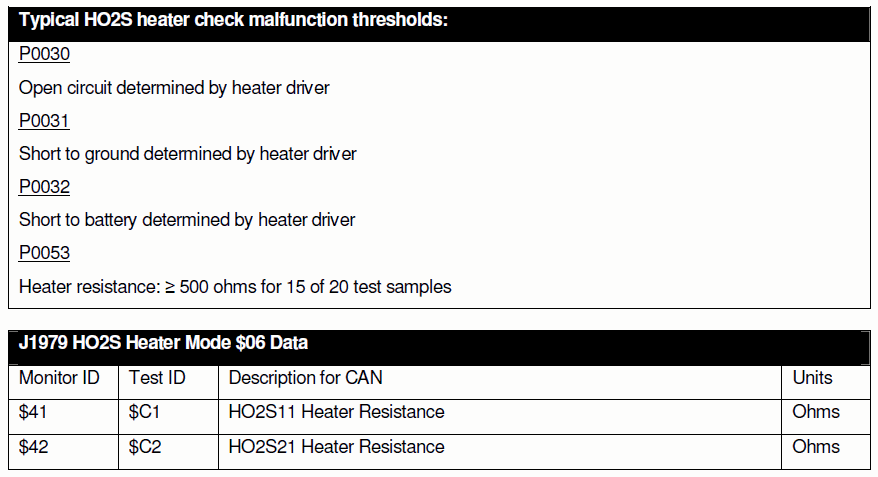

Fig 1: Mode $06 Data For Front HO2S Heater Monitor
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
