Mode 6 - 2012 Ford
›
Front Ho2S Monitor
Front Ho2S Monitor

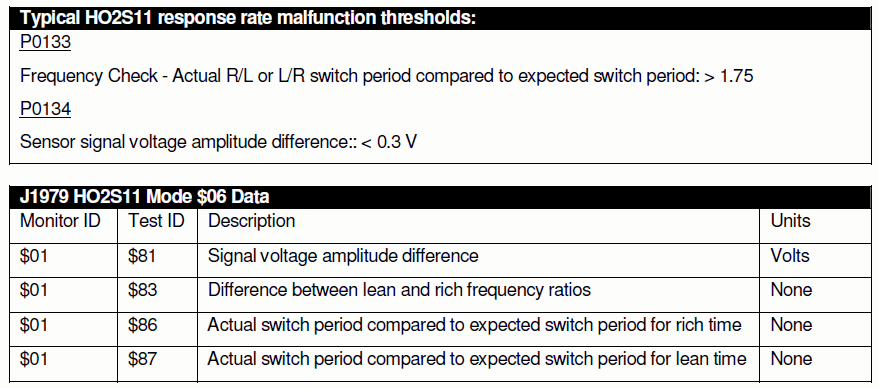

Fig 1: Mode $06 Data For Front HO2S Responce Rate Monitor
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
