Disassembly And Assembly Of Subassemblies: Differential: Notes
SPECIAL TOOLS
| Remover, Wheel Knuckle 205-253 (T87C-1104-A) |
|
| Puller, Drive Pinion/Differential Carrier 205-D036 (D81L-4220-A) |
|
| Handle 205-153 (T80T-4000-W) |
|
| Installer, Differential Bearing Cup 308-162 (T88C-77000-C) |

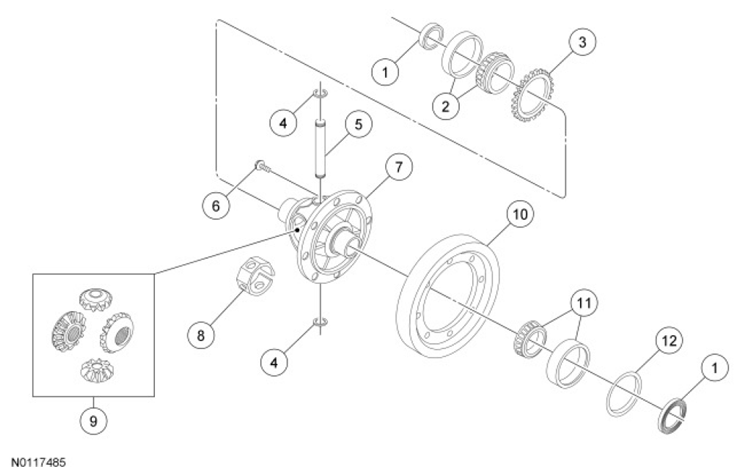

| Item | Part Number | Description |
|---|---|---|
| 1 | 1177 | Differential seal |
| 2 | 4221 | Differential bearing |
| 3 | 17285 | Speed sensor trigger wheel |
| 4 | E860187 | Retainer |
| 5 | 4211 | Differential pinion shaft |
| 6 | W700427 | Differential bolt |
| 7 | 4205 | Differential case |
| 8 | 4K322 | Differential case lining |
| 9 | - | Differential pinion gears (part of 4026) |
| 10 | 7F343 | Differential ring gear |
| 11 | 4220 | Differential bearing |
| 12 | 4228 | Differential cup |
