Roll Restrictor: Installation

NOTE: The bolts are different types, make sure the bolts are in the correct location.

Fig 2: Locating Heated Oxygen Sensor Electrical Connector Bracket And Nut

G07980015

Courtesy of FORD MOTOR CO.

Install the roll restrictor with roll restrictor bracket, roll restrictor bolts and the roll restrictor bracket bolts.
1. Tighten to 70 Nm (52 lb-ft).

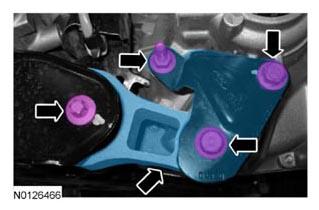

  Fig 1: Locating Roll Restrictor Bolts And Roll Restrictor Bracket Bolts
  Courtesy of FORD MOTOR CO.
2. Install the HO2S electrical connector bracket to the roll restrictor bracket and install the HO2S electrical connector bracket nut.
  - Tighten to 25 Nm (18 lb-ft).
