Transaxle Support Insulator: Removal

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
2. Remove the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .
3. Remove the cowl assembly. For additional information, refer to FRONT END BODY PANELS .
4. Remove the Air Cleaner (ACL) assembly and outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
5. Remove the PCM cover bolt and the PCM cover.

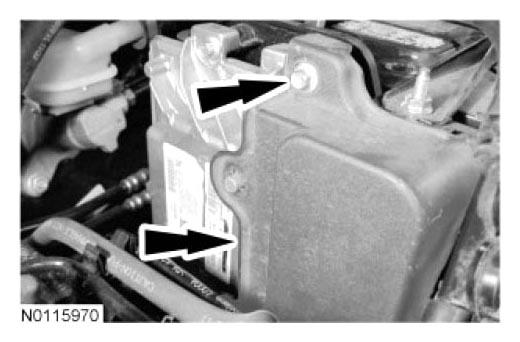

   Fig 1: Locating PCM Cover And Bolt

   Courtesy of FORD MOTOR CO.
6. Disconnect the 3 PCM electrical connectors.

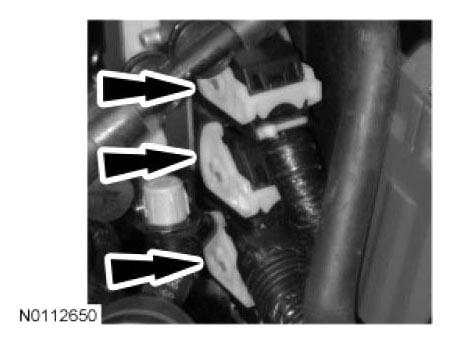

   Fig 2: Locating PCM Electrical Connectors

   Courtesy of FORD MOTOR CO.
7. Remove the 3 battery tray bolts and the battery tray.

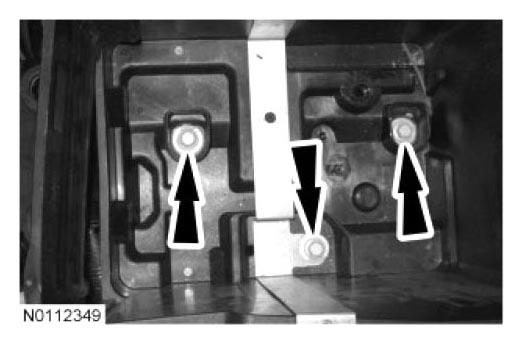

   Fig 3: Locating Battery Tray Bolts

   Courtesy of FORD MOTOR CO.
8. Using a suitable tool, detach the wiring harness from the battery tray bracket.

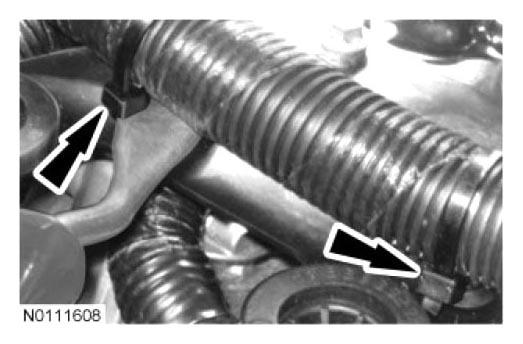

   Fig 4: Locating Battery Tray Bracket Wiring Harness Tie Straps

   Courtesy of FORD MOTOR CO.
9. Remove the 3 battery tray bracket nuts and remove the battery tray bracket.

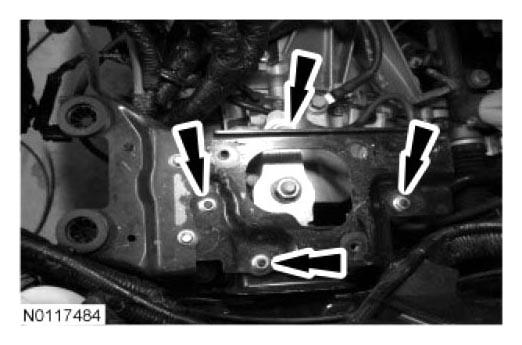

   Fig 5: Locating Battery Tray Bracket And Nuts

   Courtesy of FORD MOTOR CO.
10. Install the special tools and support the engine.

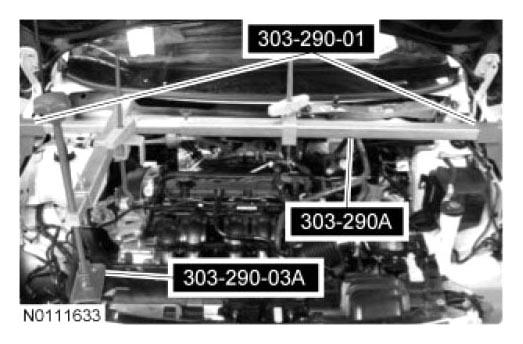

    Fig 6: Supporting Engine Using Special Tools

    Courtesy of FORD MOTOR CO.
11. Remove the 2 transaxle support insulator bolts and nuts and remove the transaxle support insulator.

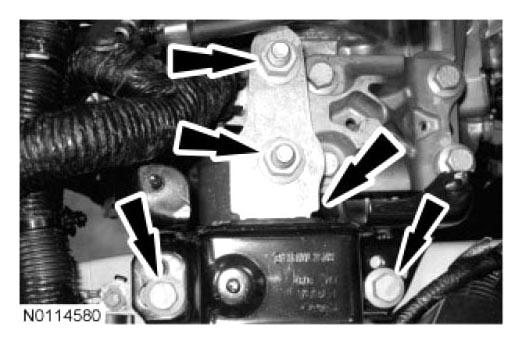

Fig 7: Locating Transaxle Support Insulator Bolts And Nuts

Courtesy of FORD MOTOR CO.
