Steering Column Lock Module: Notes

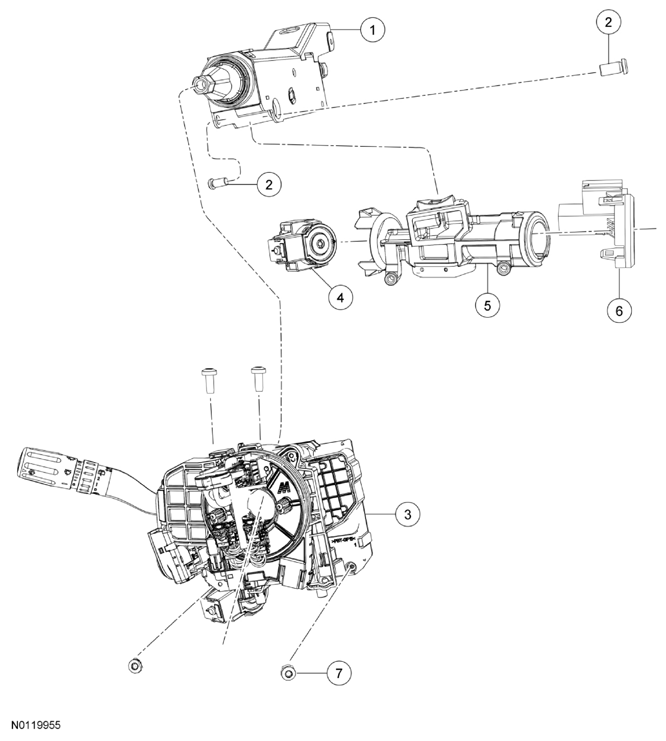

Fig 1: Identifying Steering Column Lock Module Removal And Installation

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	3C529	Steering column
2	-	Sheer bolts (part of 3F527)
3	-	Multifunction switch assembly
4	11572	Ignition switch
5	3F527	Steering column lock module
6	15607	PATS
7	W504694	Multifunction switch assembly screws
