Seat - Front: Notes
SPECIAL TOOLS
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |
NOTE:
Refer to the installation steps for tightening sequence and torque specification.
NOTE:
Passenger seat shown in illustration, driver seat similar.

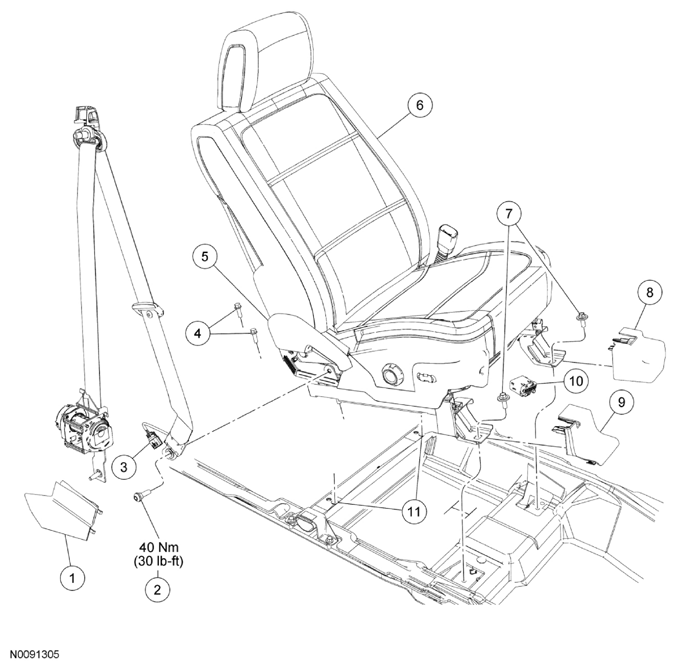

| Item | Part Number | Description |
|---|---|---|
| 1 | 61692 | Cushion side shield cover |
| 2 | - | Safety belt anchor bolt (part of 612D64) |
| 3 | - | Belt Tension Sensor (BTS) electrical connector (part of 612D64) (passenger seat only) |
| 4 | W714018 | Rear mounting bolts |
| 5 | 61736 | Manual recliner handle (if equipped) |
| 6 | - | Passenger seat assembly |
| 7 | W709428 | Front mounting bolts |
| 8 | 61748 | Front inboard cover |
| 9 | 61748 | Front outboard cover |
| 10 | - | Electrical connector(s) (part of 14A005) |
| 11 | - | Side Protection and Cabin Enhancement (SPACE®) tube locator pin holes |
