Multifunction Switch, Wiper/Washer Portion - Front: Schematic

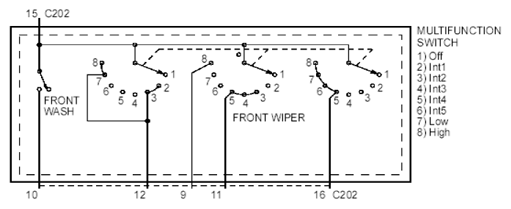

Fig 1: Multifunction Switch, Wiper/Washer Portion - Front Schematic Diagram
G07905730Courtesy of FORD MOTOR CO.
