Valve Stem Diameter
NOTE:
Refer to the SPECIFICATIONS
for 3.5L & SPECIFICATIONS
for 3.5L GDTI
for the specification.

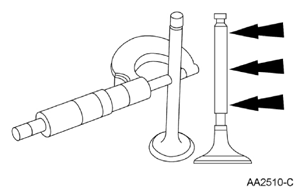

- Measure the diameter of each intake and exhaust valve stem at the points shown in illustration. Verify the diameter is within specification.
