OEM Ground Distribution: Grounds: G202

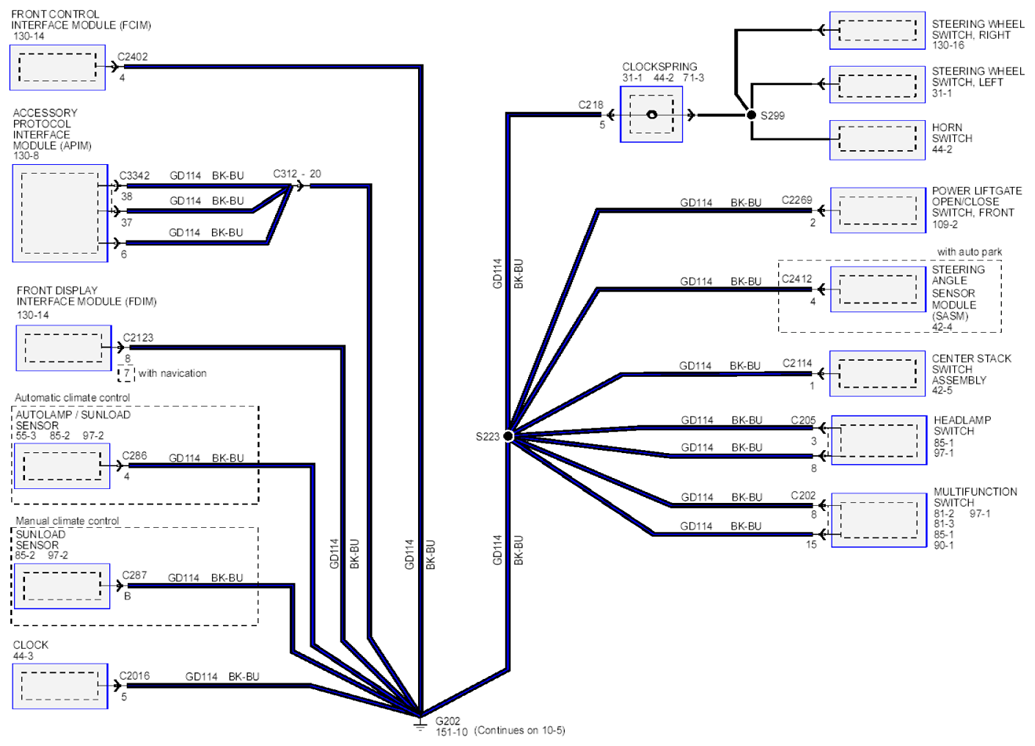

Fig 1: Grounds Circuit Diagram (G202) (View 1 Of 2)
G07905525Courtesy of FORD MOTOR CO.

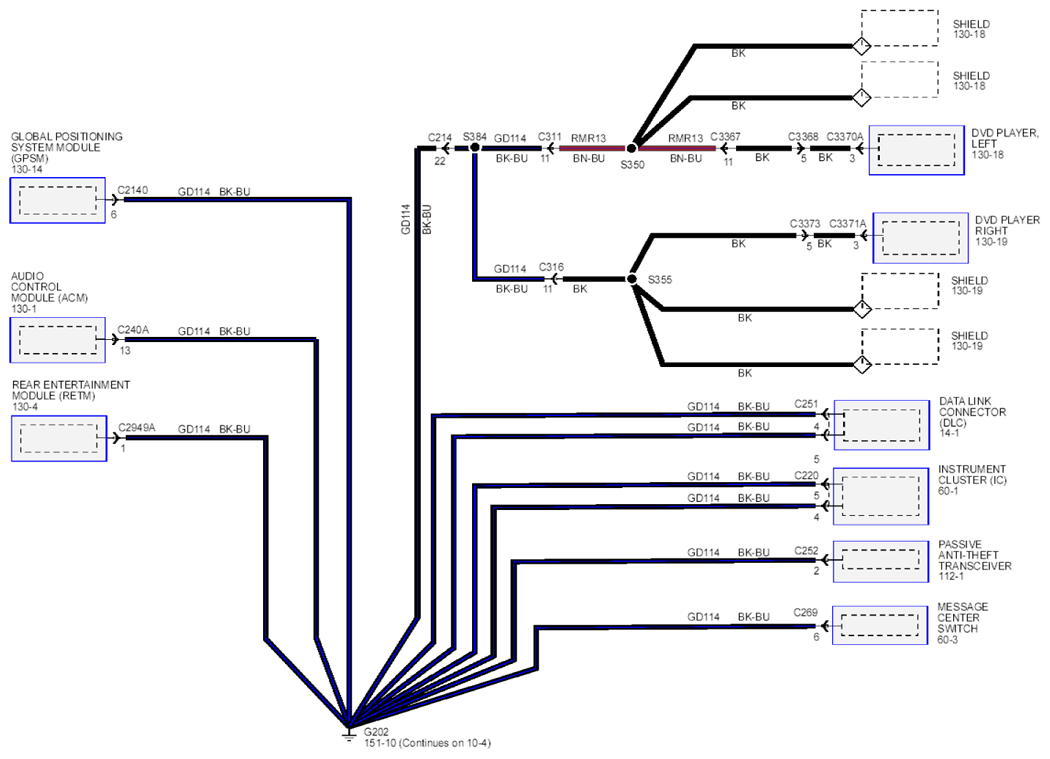

Fig 2: Grounds Circuit Diagram (G202) (View 2 Of 2)
G07905526Courtesy of FORD MOTOR CO.
