OEM Ground Distribution: Grounds: G210

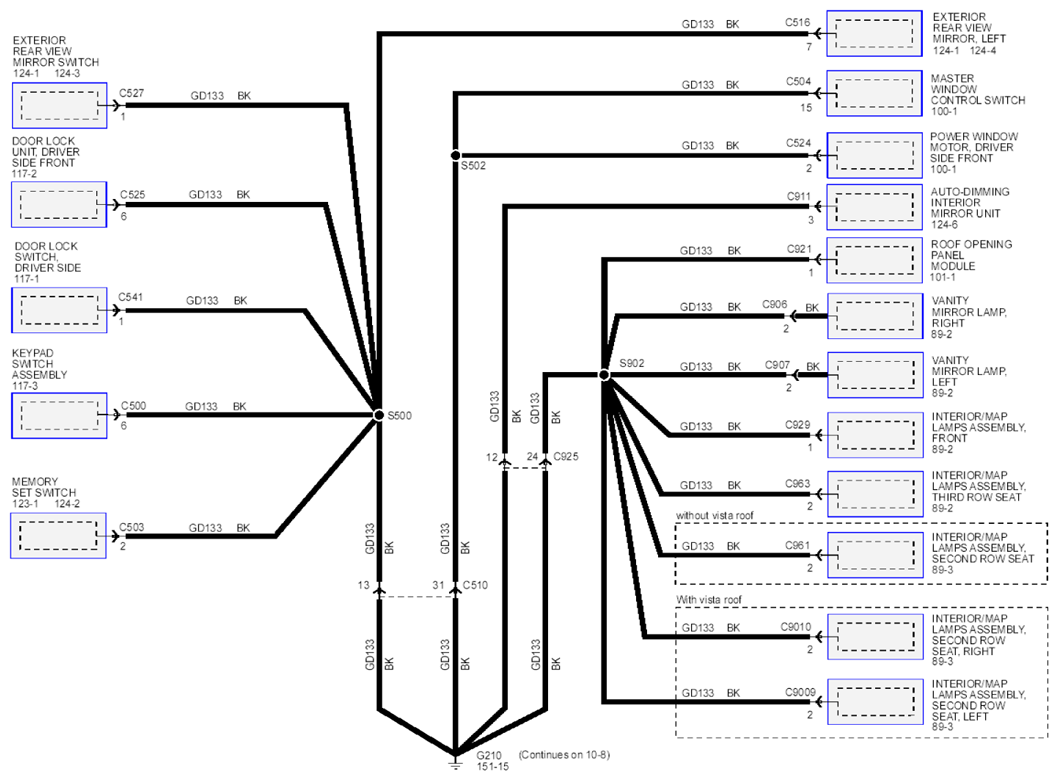

Fig 1: Grounds Circuit Diagram (G210) (View 1 Of 2)
G07905528Courtesy of FORD MOTOR CO.

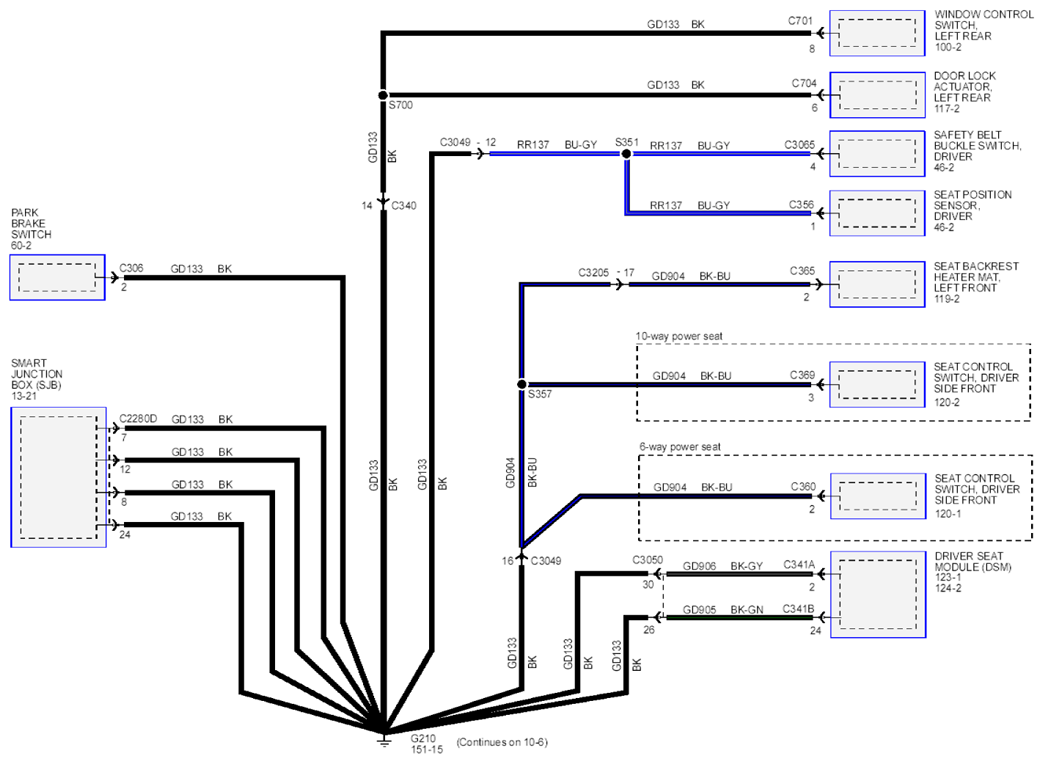

Fig 2: Grounds Circuit Diagram (G210) (View 2 Of 2)
G07905529Courtesy of FORD MOTOR CO.
