Main Control Cover - 3.5L GTDI: Removal

1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
2. Remove the Air Cleaner (ACL) and outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
3. Remove the brake booster vacuum tube from the LH turbocharger air inlet hose.

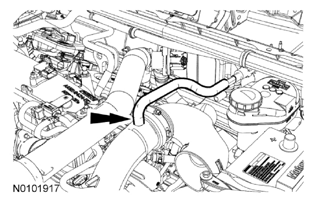

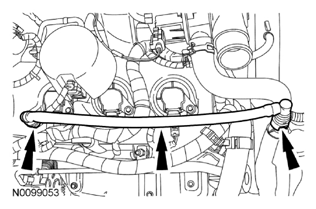

   Fig 1: Location of Brake Booster Vacuum Tube

   Courtesy of FORD MOTOR CO.
4. Remove the vacuum tube from the LH turbocharger air inlet hose.

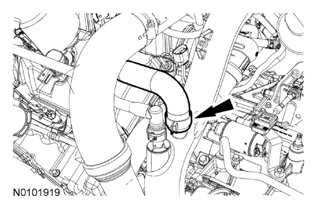

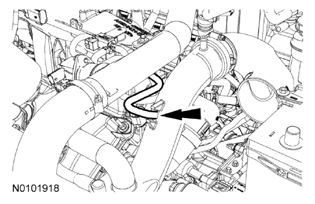

   Fig 2: Location of LH Turbocharger Air Inlet Hose

   Courtesy of FORD MOTOR CO.
5. Compress the constant tension clamp and remove the bypass hose from the LH turbocharger air inlet hose.
   Fig 3: Location of LH Turbocharger Air Inlet Hose

   Courtesy of FORD MOTOR CO.
6. Disconnect the 2 quick connect couplings and remove the crankcase vent tube.

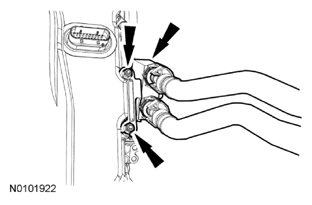

   Fig 4: Location of Crankcase Vent Tube And Quick Connect Couplings

   Courtesy of FORD MOTOR CO.
7. Loosen the 2 clamps and remove the LH turbo inlet tube.

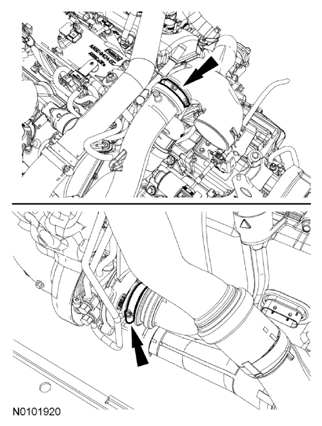

   Fig 5: Location of LH Turbo Inlet Tube Clamps

   Courtesy of FORD MOTOR CO.
8. Remove the 4 retainers and the underbody shield.

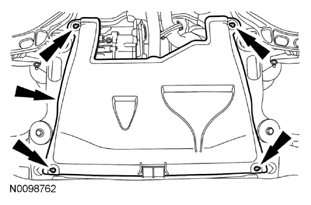

   Fig 6: Location of Retainers And Underbody Shield

   Courtesy of FORD MOTOR CO.
9. Loosen the clamp and disconnect the LH turbocharger-to-Charge Air Cooler (CAC) hose from the turbocharger and position it aside.

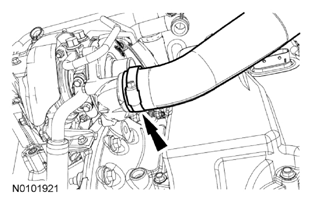

   Fig 7: Location of LH Turbocharger-To-Charge Air Cooler(CAC) Hose Clamp

   Courtesy of FORD MOTOR CO.
10. Remove the transmission fluid drain plug and allow the transmission fluid to drain.

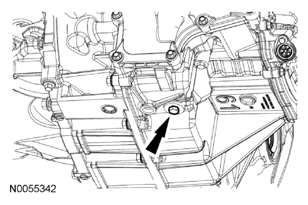

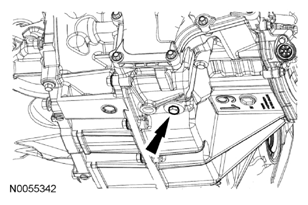

    Fig 8: Location of Transmission Fluid Drain Plug Bolt

    Courtesy of FORD MOTOR CO.
11. Install the transmission fluid drain plug.
    • Tighten to 9 Nm (80 lb-in).
    Fig 9: Location of Transmission Fluid Drain Plug Bolt

    Courtesy of FORD MOTOR CO.
12. Disconnect the transaxle electrical connector and remove the wiring harness fastener from the main control cover stud.

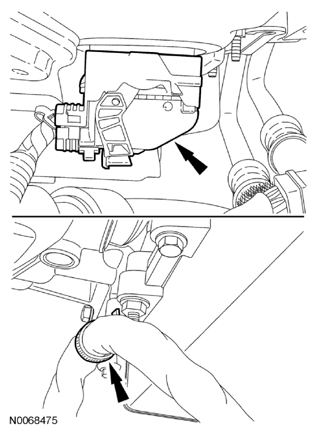

    Fig 10: Location of Transaxle Electrical Connector And Wiring Harness Fastener

    Courtesy of FORD MOTOR CO.
13. Remove the 2 nuts, pull the transmission fluid cooler thermal bypass valve off of the main control cover studbolts and position it aside.
    Fig 11: Location of Transmission Fluid Cooler Thermal Bypass Valve And Nuts

    Courtesy of FORD MOTOR CO.
NOTE: Note the location of the studbolts for assembly.
14. Remove the 14 bolts and the main control cover.

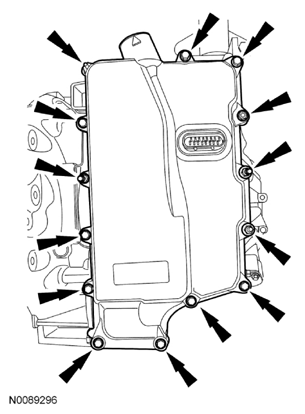

Fig 12: Location of Main Control Cover Bolts

Courtesy of FORD MOTOR CO.
